Huge sound pressure level
The C-208 uses a pair of high powered 8” LF drivers and a 3.2” neodymium HF driver to generate an impressive 132dB max SPL while handling up to 1600 watts peak.
Bi-amp and Passive modes
On the rear of the WLA-28 is the Bi-amp and Passive mode switch. This allows for versatile and controllable configurations where separate amps can be selected to drive the HF and LF components individually.

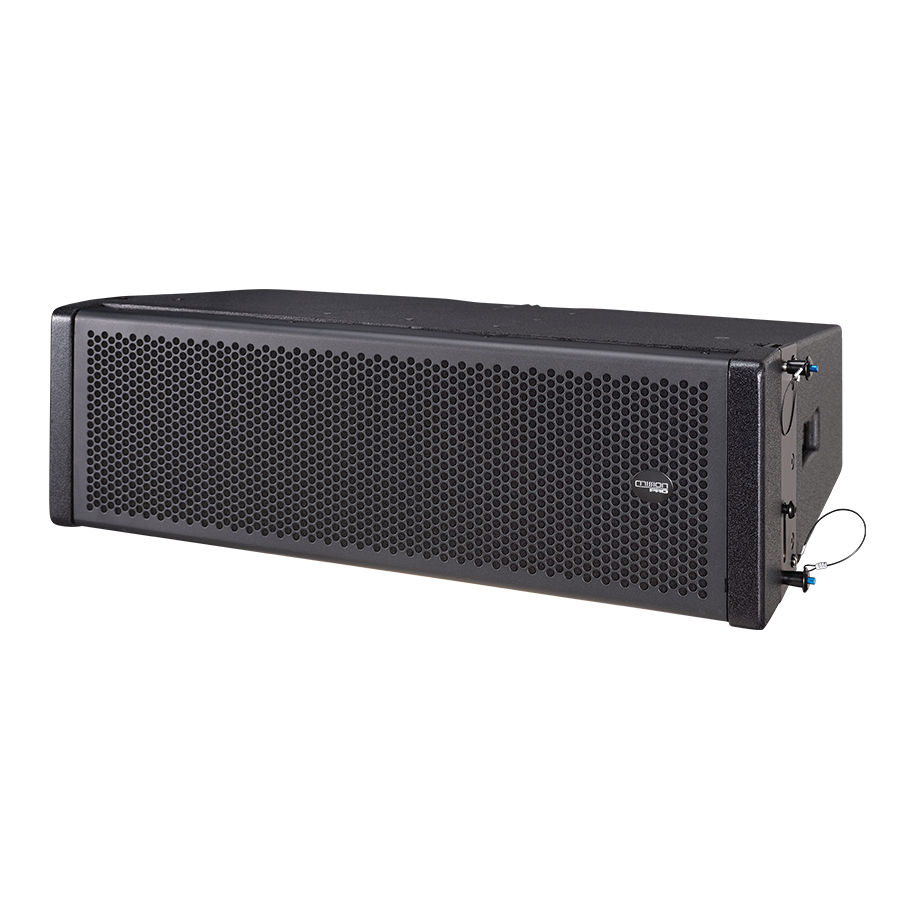

C-208
The WLA-28 has been developed to condense the extreme SPL and long-throw capabilities of larger line array systems in to a compact 2 x 8” configuration.
SPECIFICATIONS
System Type：Passive
Configuration：Two-way 2 × 8”
Frequency Response (+/-3dB) ：70Hz - 20kHz
Frequency Range (-10dB)：65Hz - 20kHz
Sensitivity (2.83v/1m) ：100dB
Calculated Maximum SPL @1m：LF:128dB HF:132dB
System Rated Impedance：16Ω
Low Frequency Transducer
Size：2 ×203.2mm / 2×8"
Voice Coil Size：50.8mm / 2"
Rated Impedance：8Ω
LF Power (re:AES2-2012)：2×200W
High Frequency Transducer
HF Driver Type：Compression Driver
Voice Coil Size：81.3mm / 3.2"
Exit Size：35.56mm / 1.4"
Diaphragm Material：Titanium
Rated Impedance：8Ω
HF Power (re:AES2-2012)：80W
Nominal Coverage (H × V) ：100°× 10°
Power
System Continuous Power：LF:400W HF:75W
System Programme Power：LF:800W HF:150W
System Peak Power：LF:1600W HF:300W
Crossover frequency：1.8kHz
Input Connector：2×speakON compatible
Hardware：Integral side plate adjustable rigging 0°-10°
Enclosure
Enclosure Material：15mm Plywood
Finish：Rhino Black Paint
Grille Material & Finish：1.2mm Black Steel
Dimensions - (Unpacked)
Height：250mm / 9.84"
Width Front ：424mm / 16.69"
Width Rear：424mm / 16.69"
Depth：760mm / 29.92"
Dimensions - (Packed)
Height：375mm / 14.76"
Width Front ：545mm / 21.46"
Width Rear：545mm / 21.46"
Depth：855mm / 33.66"
Weight
Net Weight (kg / lbs)：27kg / 59.52lbs
Gross Weight (kg / lbs)：33kg / 72.75lb
